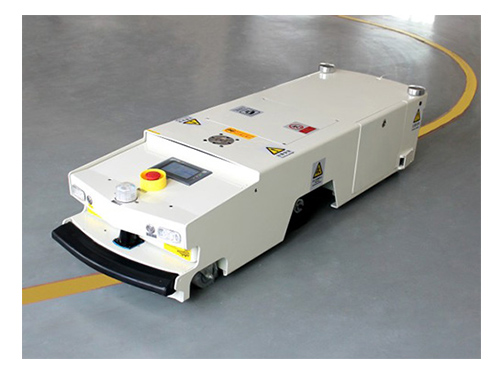

Trailed the AGV

Introduction of traction type AGV car

Can be tractor in the trailer AGV trolley trailer, a traction can be more than one material vehicles, while the body can be placed on the tray, racks, boxes and other goods for handling, guided by the AGV guide through the identification of landmark selection destination .

Traction AGV car advantage

1, big man-machine interface, handling more simple.
2, large battery, durable life.
3, full power, human custom load capacity.
4, intelligent traffic management, automatic avoidance, multi-level warning, emergency braking, so that the car is more safe and reliable operation.
5, unmanned transport, greatly reduce labor and operating costs.

Traction AGV trolley parameters

Body models Traction AGV
physical dimension L850 * W350 * H350 (mm)
control method PLC / AGV motion control chip (optional)
Navigation mode Magnetic Strip Guidance / Photoelectric Guidance / Laser Guidance (optional)
Walking direction Move forward, turn left and right, bifurcation
Communication function Wireless LAN (optional)
Drive mode Differential drive
Drive power supply DC24V, DC48V
Drive the lift mode Manual lift / electric lift
Load capacity 100,300,500,1000 KG (can be customized)
Travel speed 30-45m / min Speed ​​(or custom)
Turning radius The minimum can be up to 500mm (route laying radius)
Navigation accuracy ± 10 mm
Way of working 24 hours
Gradeability 3-5 degrees
Stop Accuracy ± 10 mm
Charging method Manual charging (optional automatic charging)
Battery Maintenance-free rechargeable batteries, the number of continuous discharge> 300 times
Safety sensing range ≤ 3m, adjustable, emergency braking distance of less than 20mm
Human - computer interaction Using touch-screen human-computer interaction, you can easily set the parameters, set the site and alarm.
Use of the environment Indoor temperature: 0 ~ 40 degrees, relative humidity: 40% to 80%
Security Side obstacle detection sensor + mechanical anti-collision mechanism double protection
Design life > 10 years
