Backpack the AGV

Carry AGV introduction

Carrying AGV car is placed in the AGV body tray, rack, box and other cargo handling, through the magnetic strip guide can point to multi-point material transport. Can be selected by the call system automatically transferred to the site. Backpack AGV for transport frequent, long material supply cycle production system.

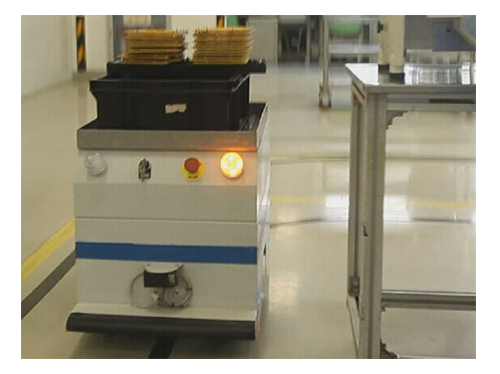

Carrying AGV photo show

Carrying AGV characteristics

1, single, double, all the way to run, small size, flexible handling.
2, AGV car AGV unmanned vans can be used in conjunction with the assembly line, instead of assembly line, the formation of flexible production system.
3, AGV car body placed on the tray, racks, boxes and other cargo handling, or AGV tail trailer material truck.
4, carrying AGV car handling speed and stability, so that parts can be quickly and accurately run.

Carry AGV parameters

product name One - way backpack AGV
  Product number BF1400V1
product code 8682001200000
  Product Size   L1400 * W600 * H350 (mm)
  Guidance Magnetic stripe guidance
Walking direction Can be customized routes, multi-site docking function, forward travel, turn left and right, bifurcation
wireless network WiFi network · RF network
  Drive mode Differential drive
Drive power supply DC24V
Carrying capacity 300 kg · 1000 kg · 750 kg · 1000 kg
Body models   Bear type
Walking speed   0-45 m / min
Turning radius Minimum of 300mm (tape path laying radius)
Navigation accuracy ± 10 mm
Way of working 24 hours
Gradeability 3-5 degrees
Stop Accuracy ± 10 mm
Charging method Manual charging · Automatic charging
Safety sensing range ≤1m, adjustable, the emergency braking distance is less than 20mm (adjustable)
Alarm form Audible alarm
Battery Lead-acid battery · Lithium battery
Security Front obstacle detection sensor + mechanical anti-collision mechanism double protection + emergency stop button
Design life > 10 years
