Automatic robotic palletizing machine product description
DANBACH ROBOT

---

Fully automatic robotic palletizing machine, product description: Robotic palletizing machine is suitable for chemical, food, beverage, beer, air conditioning, plastic and other production enterprises to carry out various shapes of products such as carton, canning, bagging, boxing and bottle loading. Packing and palletizing. The robotic palletizing machine has a simple structure, few components, and few accessories, so the maintenance cost is low. Easy to maintain and repair.

The robotic palletizing machine can be set to be used in a narrow space, and a plurality of palletizing arrangements can be set, and the control operation is performed on the touch panel of the control cabinet, and the operation is simple. It can work 24 hours: it saves a lot of workers' workload, so it can save hundreds of thousands of human resources costs every year and achieve the goal of reducing staff and increasing efficiency.

At present, a four-axis handling robot is taken as an example, and it is divided into a plurality of models ranging from 100Kg to 700Kg depending on the load. It can reach a large movement speed of 2500mm/s in linear motion; the handling capacity can reach 1600 times/hour. From the perspective of accuracy, each palletizing robot has a control system that greatly guarantees the accuracy of the operation, and the repeatability can reach ±0.5mm, which can meet the positioning requirements of logistics palletizing operations.

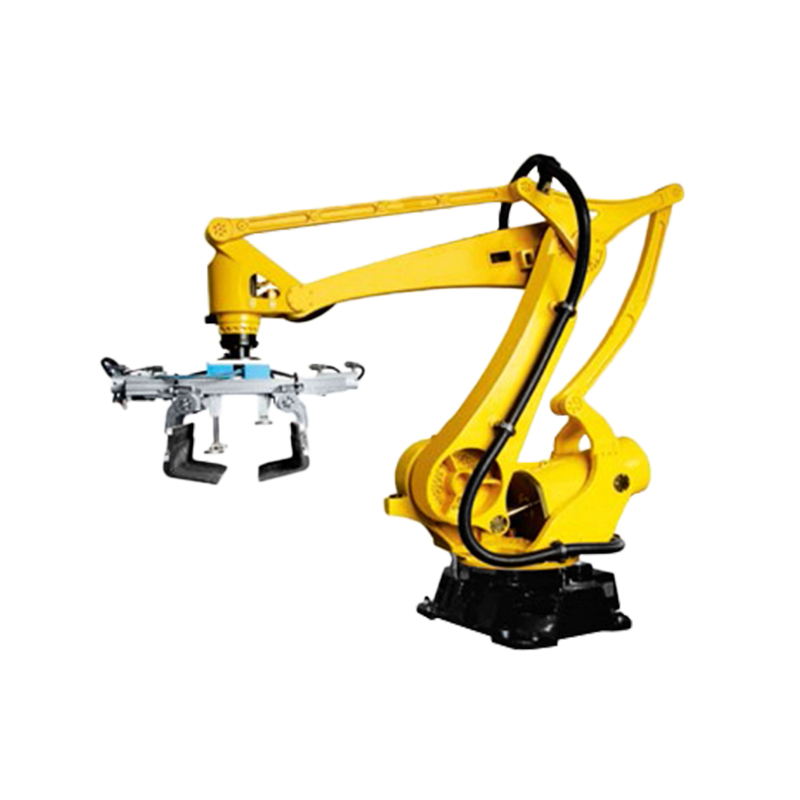

The 4-axis design, high-speed robot with a reach of 3.15m and a payload of 250kg, is suitable for automated stacking of materials in bags, boxes, crates, bottles and other packaging forms. Suitable for harsh environments, with IP67 protection. The versatility, reach and load-bearing capacity of the robot can almost meet the needs of stacking applications.
