AGV automatic forklift increase productivity
DANBACH ROBOT

---

AGV (Automated Guided Vehicle) is an unmanned automatic truck that can be widely used in warehouses, docks, production workshops, etc. It is a representative equipment of modern logistics technology. The traditional material transportation in the equipment assembly industry is in the form of manual or roller. This form has high cost and long construction period. After using AGV, the cost of the factory is greatly reduced, and the work efficiency is greatly improved. In this project, automatic handling of the battery and flexibility of the production line are realized.

Operation status:

The AGV stop accuracy is plus or minus 10mm (accuracy is related to speed). The positioning is reserved for positive and negative 17mm. Through the initial positioning of the positioning device, the accuracy can reach plus or minus 2mm. After the secondary positioning of the cylinder and the positioning pin, the accuracy can reach plus or minus 0.3mm.

Shipping process:

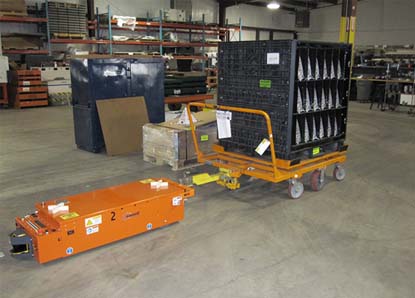

The AGV transports the skip to the positioning mechanism of the robot arm, and then lifts and positions the clamp to the working position by the jacking positioning mechanism. After the assembly is completed, the AGV transports the skip to the next station. Or the AGV transports the skip to the manual assembly station and reaches the designated position to be assembled by the worker. After the work of the station is completed, the AGV transports the skip to the next station.

Project outcome:

The AGV realizes the handling and positioning of the fixture, realizes the intelligent transportation of battery materials and the flexibility of production assembly and manufacturing, greatly reduces labor intensity, saves labor costs, saves space, shortens time and improves production efficiency. The production line can be adjusted according to the capacity requirements. In the event of an emergency, the AGV can be operated to the set standby zone, effectively reducing the impact on production capacity.
